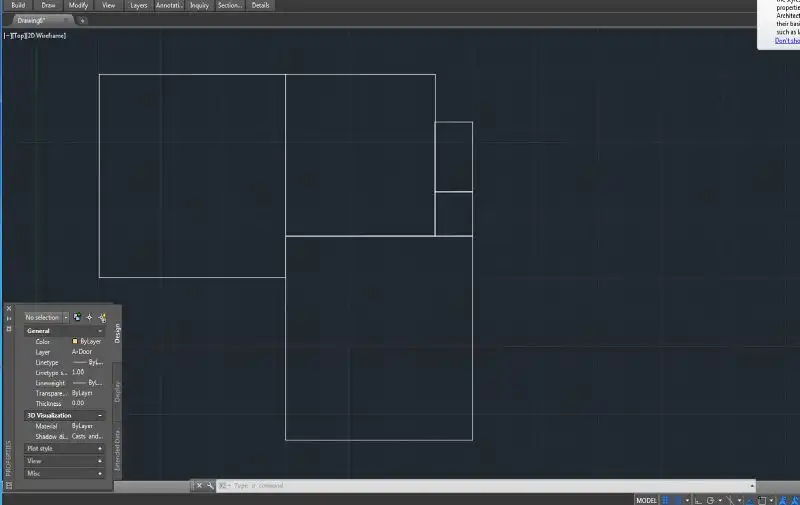

A couple of extra little hints if you have ortho on pick your start point and drag mouse in the direction then enter the distance. Whilst coming to grips with ARC for door try this draw a circle with centre point at hinge with correct radius draw a 90 line from hinge in swing direction use TRIM to make into an arc using the new and existing edge trim also the 90 deg line.
You have not mentioned printing so a quick simple guide go to a layout and draw a rectangle slightly smaller than you paper size metric 6mm, 1/4" maybe, then MV for modelview and create a box inside this rectangle, dbl click to jump in and do zoom E your dwg should appear adjust a bit or you can use a true scale will get back to that. dbl click outside or PS, now plot pick your printer and paper size, use window pick lower left upper right, Fit, say landscape top right use little down arrow and use ACAD.ctb (note if this does not make sense there is a > on bottom left click it) check preview if looks ok the print. Else do a screen grab and post. |
|
